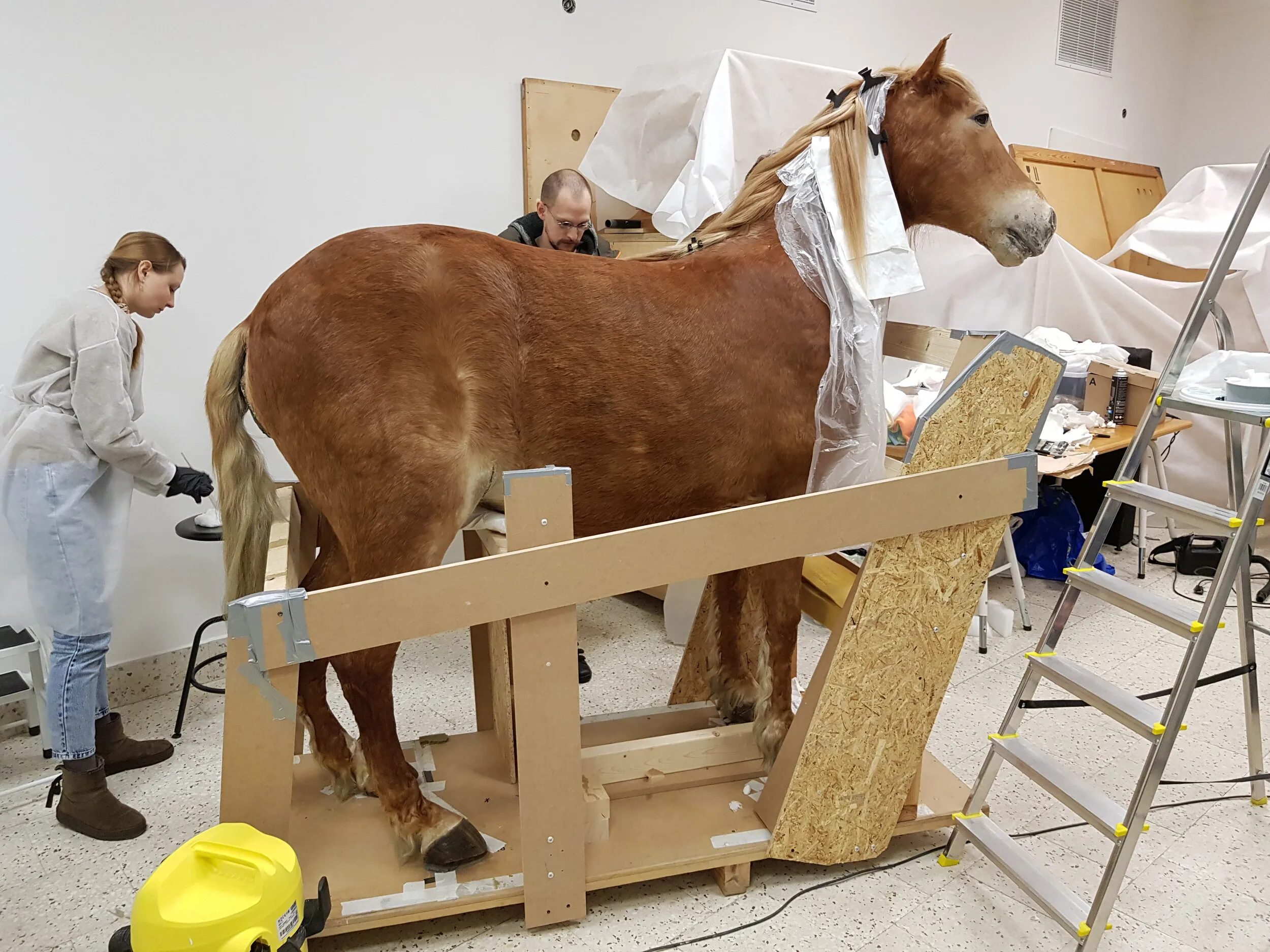

Support system for the horse from Katarzyna Kozyra's Animal Pyramid.

Animal Pyramid

A protection system for a museum object during conservation work.

Client
Michał Kożurno

Scope of work

  • 3D scanning
  • CAD modelling
  • support design
  • 3D printing
  • assembly

Digital design for protecting an artwork

For Michał Kożurno and Zachęta National Gallery of Art, we developed a support and protection system for the horse from Katarzyna Kozyra's Animal Pyramid. The solution stabilised the fragile object during conservation while leaving conservators practical access to its critical areas.

This project focused not on displaying an object, but on handling a very fragile museum artwork safely. For Michał Kożurno and Zachęta National Gallery of Art, we developed a support and protection system for the horse from Katarzyna Kozyra’s Animal Pyramid.

The challenge

The horse had to undergo conservation while lying on its side. Its delicate and unstable structure meant that it could be damaged or deformed during movement and support.

Scanning and the digital model

We scanned the entire object with an Artec Leo 3D scanner. The scan was used to prepare an averaged surface model and then a parametric CAD model for the design stage.

Support design

The final system combined a wooden frame with fitted shells supporting the horse’s body. The geometry reduced the risk of deformation, preserved service access and enabled safe assembly and removal.

Why it matters

This is an example of using 3D scanning and digital design not to create a replica, but to protect an original artwork. In this kind of work, fit, predictable structural behaviour and object safety matter most.

What mattered in this project

  • Protecting a fragile object

    The horse had to be turned on its side during conservation. The structure had to carry its weight and reduce the risk of deformation or damage.

  • Artec Leo scanning

    We scanned the entire object in 3D, creating the accurate geometry needed for a fitted support system.

  • An averaged surface model

    The raw scan included incidental irregularities, including loose tufts of hair. We prepared an averaged model of the body's surface.

  • A parametric CAD model

    The averaged geometry was converted into a parametric CAD model, allowing us to control the fit of the shells and load-bearing elements.

  • Assembly without unnecessary intervention

    The shells were designed for safe installation and removal and for attachment to a wooden frame without accidental pressure points.

3D model of the Animal Pyramid horse prepared for support design.

From scan to model

Digital geometry provided the basis for support elements fitted to the object's shape.

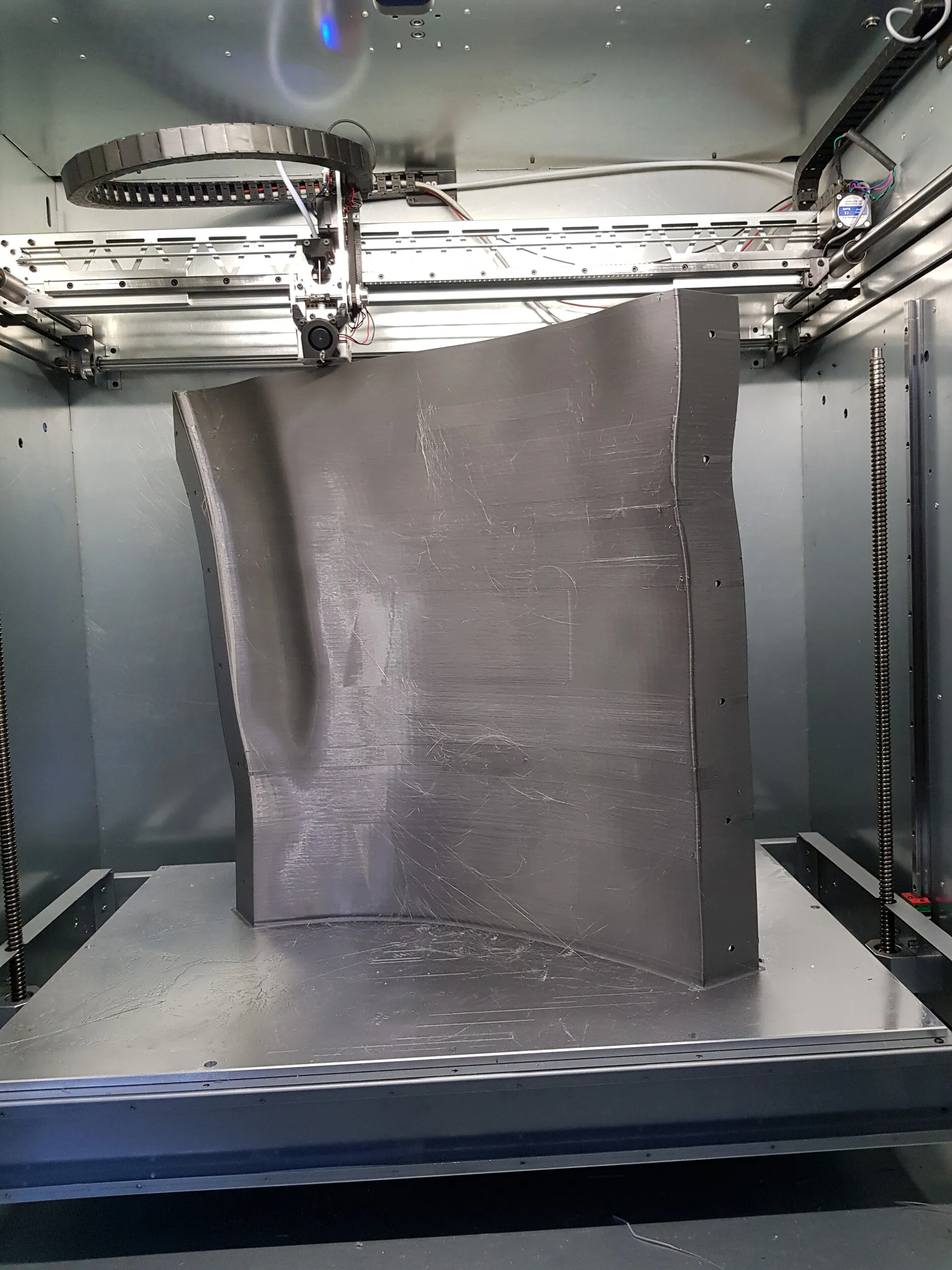

Elements of the Animal Pyramid protection system.

A semi-open sarcophagus

The structure stabilises the horse while leaving access to areas needed during conservation.

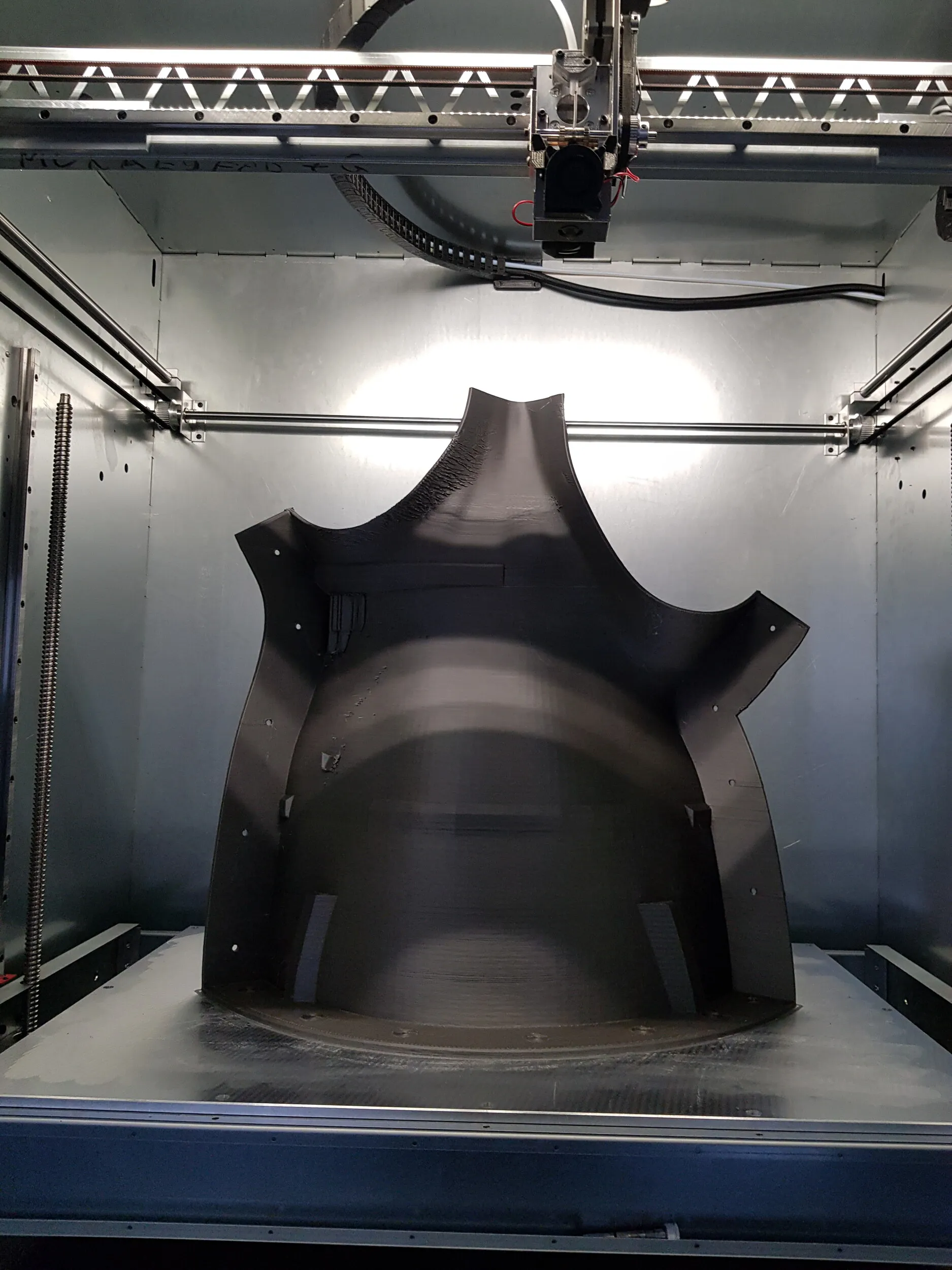

Animal Pyramid horse support system mounted on a wooden frame.

Safe assembly

Mounting elements secure the shells to the support structure without unnecessary interference with the artwork.
